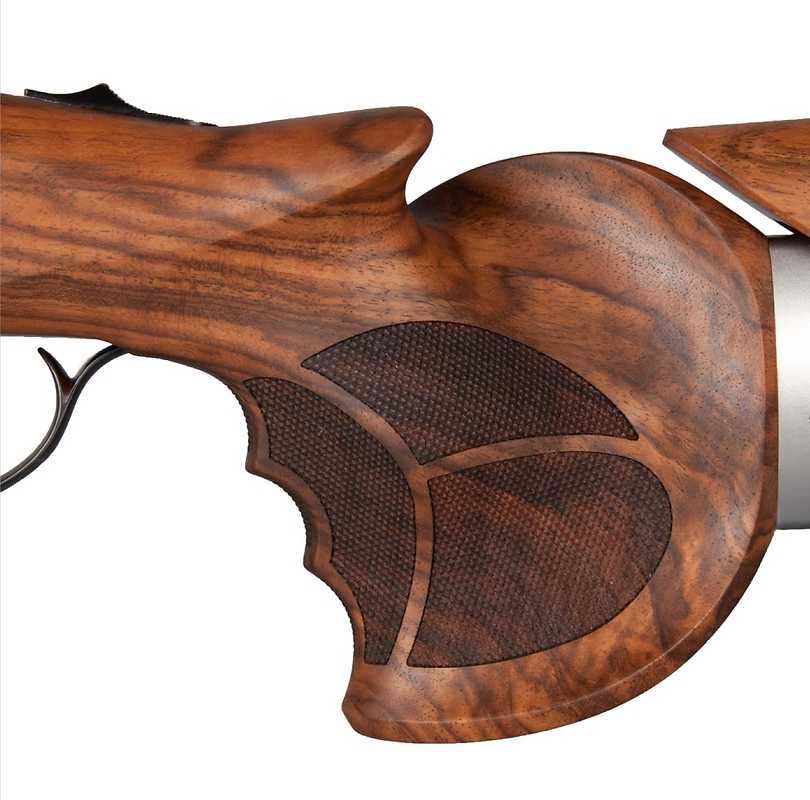

With finger grooves and Rhomlas® surface structure in four different sizes (XL, L, M and S) or without finger grooves in the sizes L and S, with stippled surface as an individual custom-made fabrication according to a hand outline sketch or after a personal orthopaedic adjustment:
all our grips are produced for personal fitting to all different kinds of possible hand shapes.

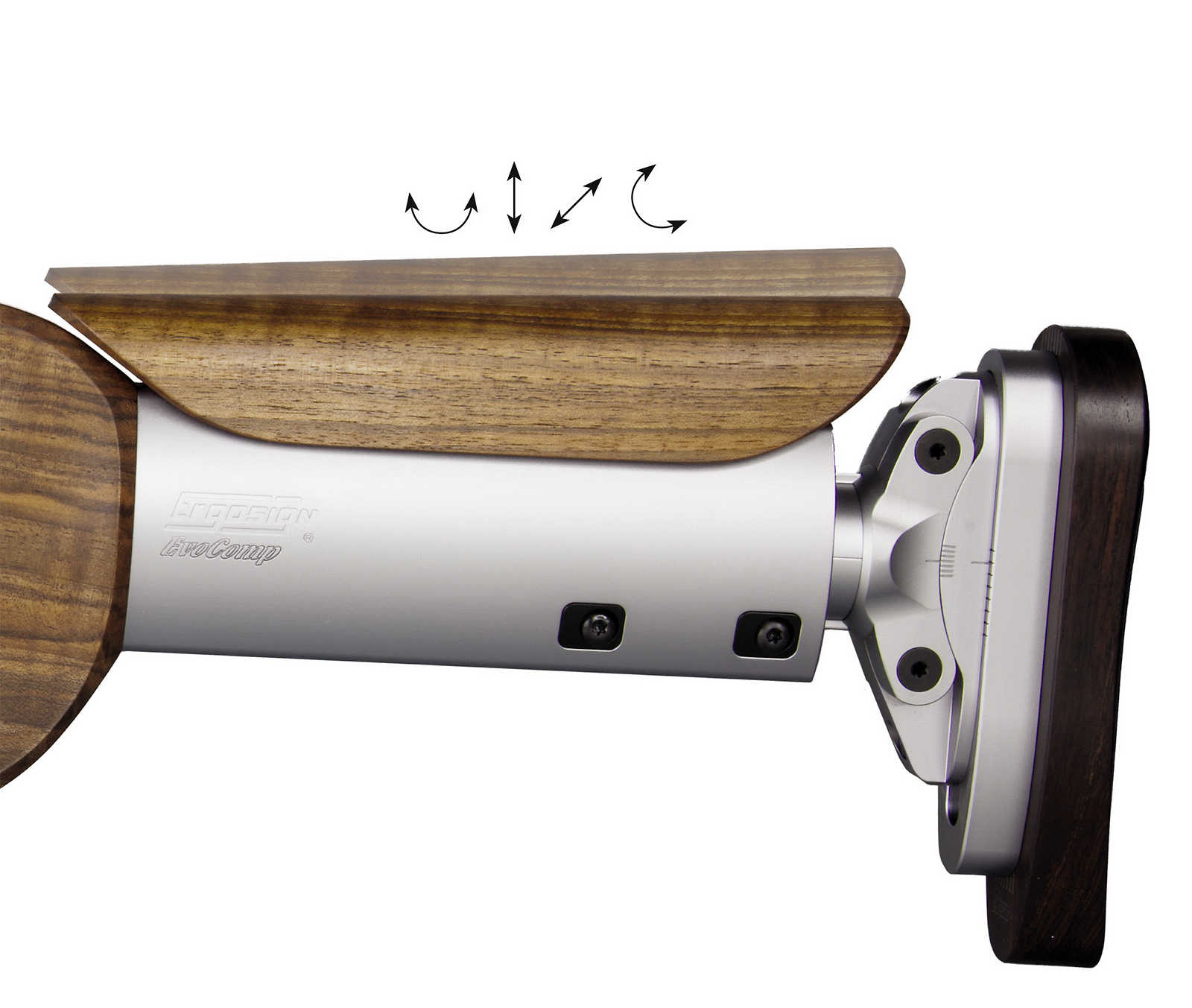

The correct position of the head to the rib is essential for a precise point of impact.
For this reason, the standard comb of 33 mm can be fully adjusted in height (drop) from approx. 42/46 to 36/36 (with a comb of 38 mm from approx. 37/41 to 28/28) and approx. 4 mm in width (cast +1 to + 5mm).

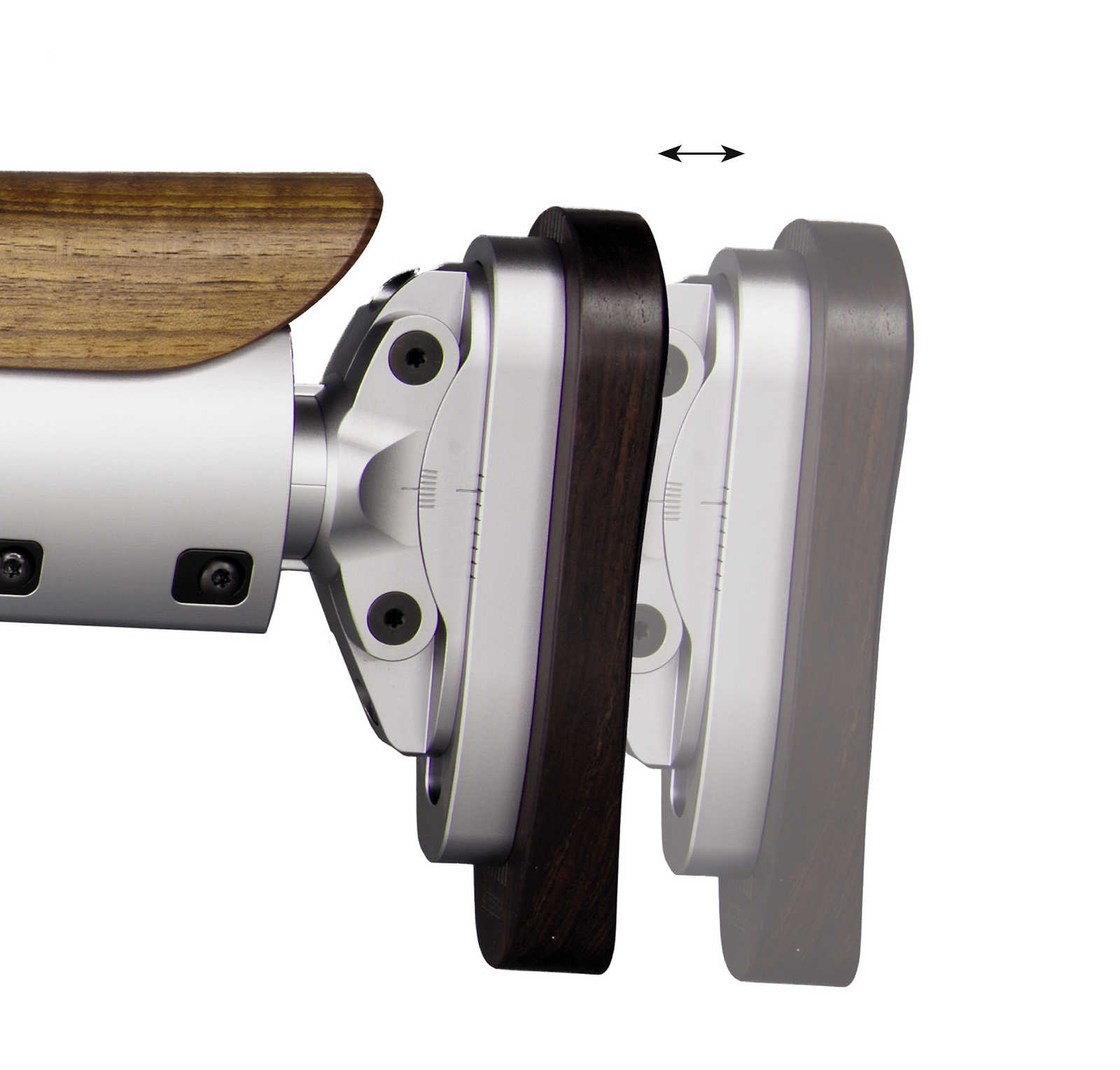

Having a range of adjustment from approx. 340 mm to approx. 390 mm, it is simple to fit the stock with the telescopic tube to the individual body size. Additionally, a shorter version for smaller shooters or for shooters with short arms of approx. 320 to 360 mm as well as a long version for very tall shooters with an adjustment range of approx. 360 to 430 mm are available.

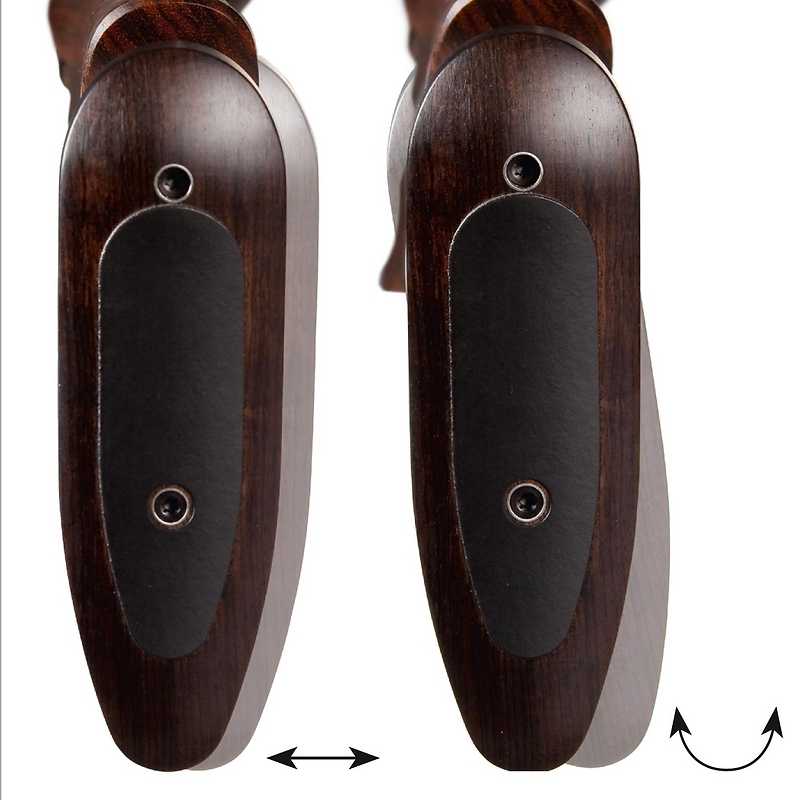

For up to 9 mm by adjusting the butt plate. Additionally the butt plate is rotatable by ± 10°.
For shooters with a short neck or a big chest measurement the additional cast of about 7-13 mm (standard 3-9 mm) optimizes the adjustmens to the body - to reach a higher comfort.

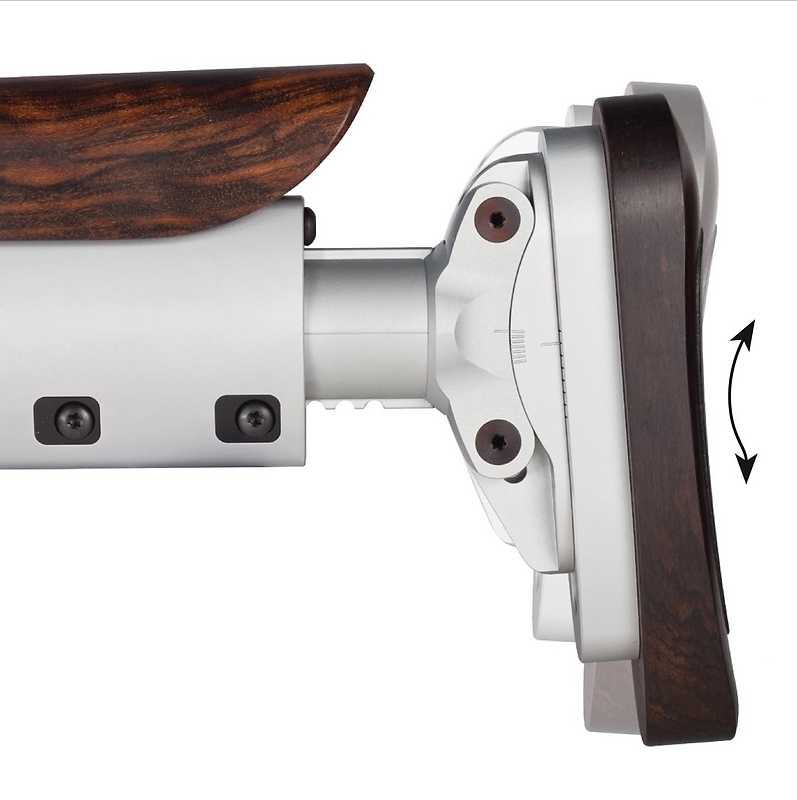

The pitch is fully adjustable by approx. 90°- 82°. Once it has been fitted correctly, the gun will remain in exactly the same position after a shot. This greatly increases the hit ratio on the second shot of the target pair.
An extended pitch adjustment of +4° is optional. For shooters with an upright shooting position and a big chest measurement the pitch can be additionally extended by 4° (can be recommended for a heightened middle section under 0° and for the TR version).

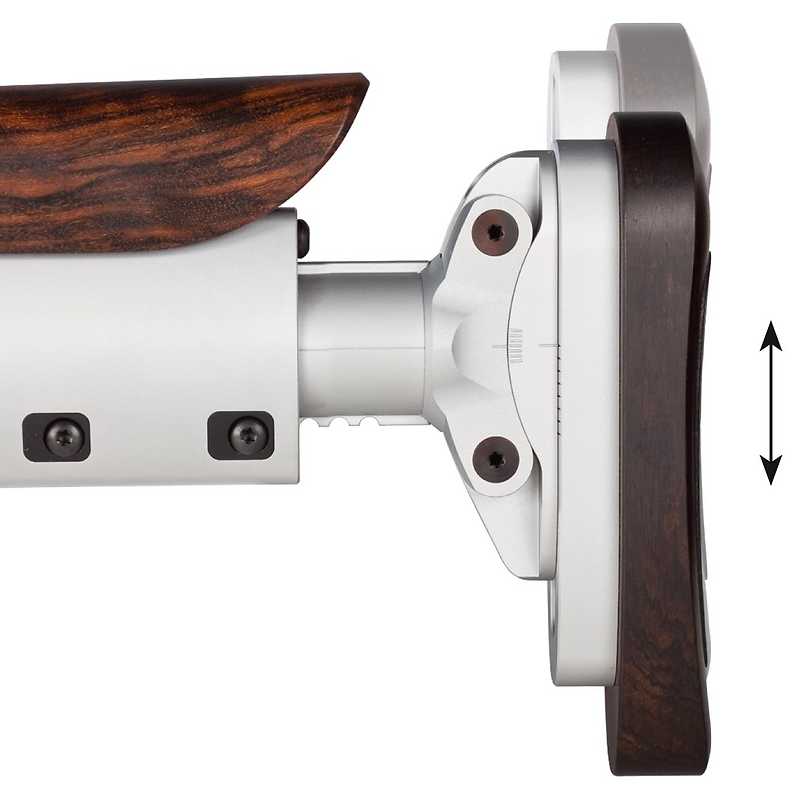

Depending on the length of the shooter’s neck and the mounting position, the level of the butt plate can be individually adjusted within a range of 40 mm to 58 mm. By mounting a higher clamping collar between the comb and the middle section the height of the butt plate rises proportionally.
