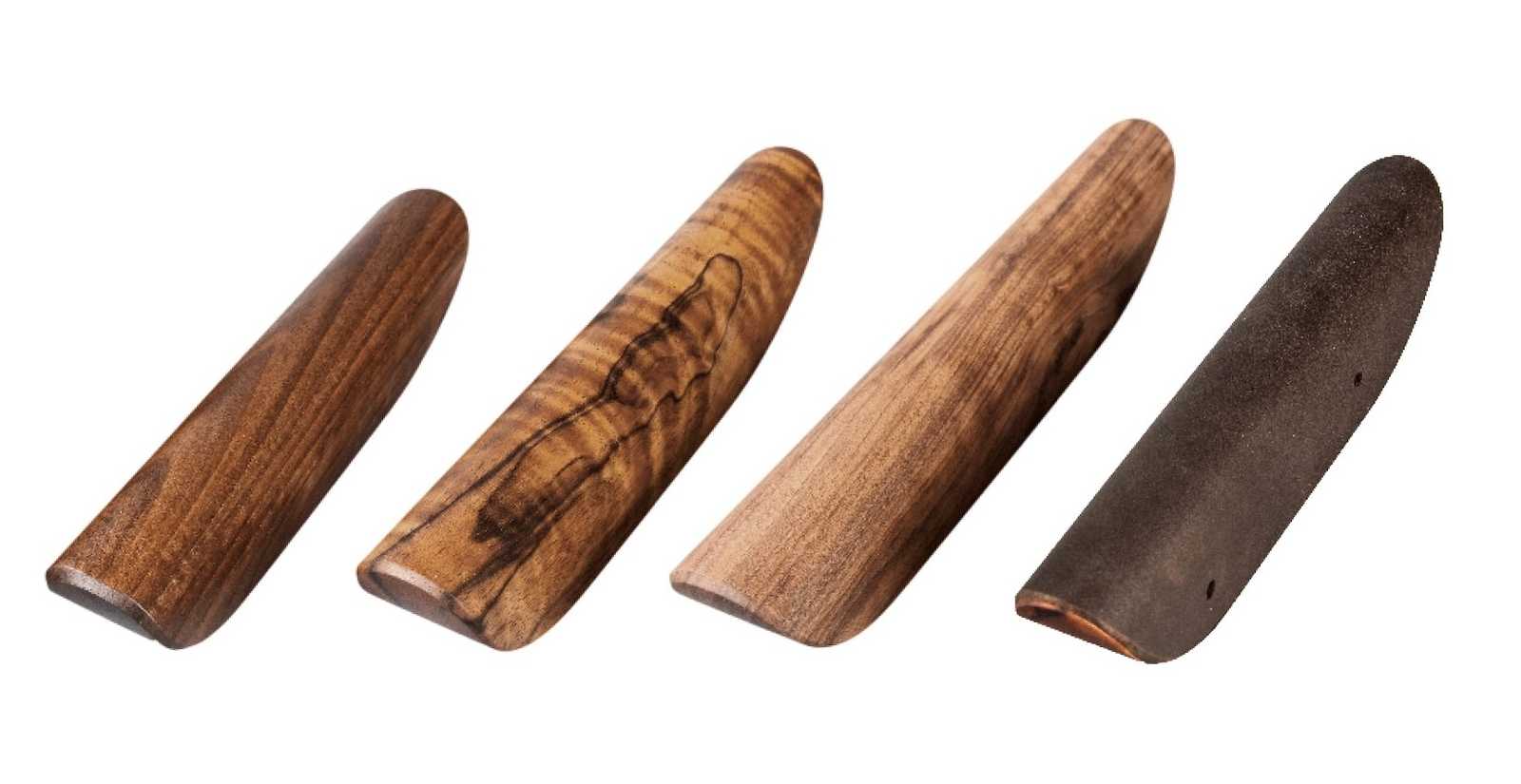

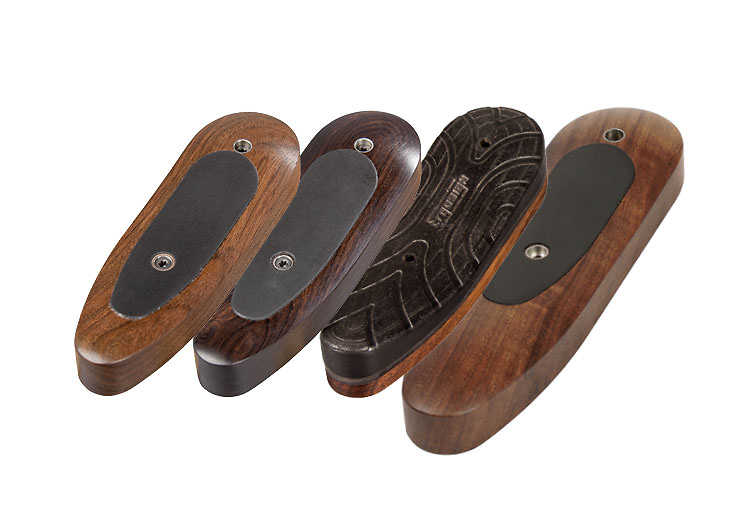

The correct butt plate for each discipline:

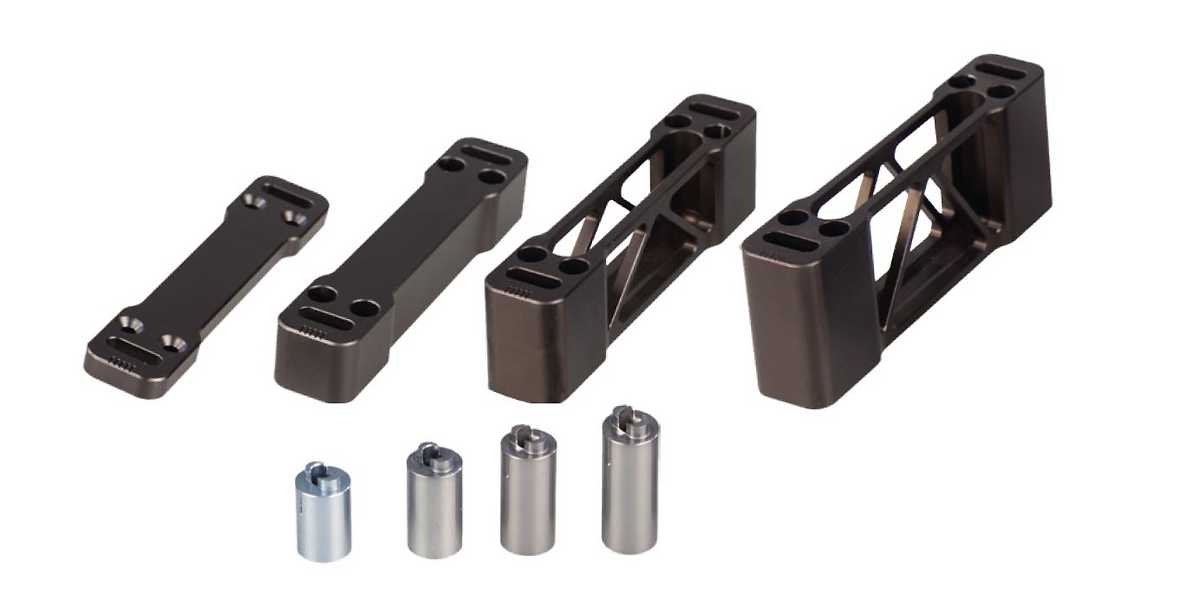

For shotguns with heightened ribs our different combs and clamping collars (the holder between middle section and comb) allow one to raise the standard ratio of the drop in proportion to the rib. For widely varying head positions we offer the possibility of lengthening the comb.
Combs are available with a height of 33, 38, 43 and 48 mm, the corresponding clamping collars are available with a height of +10, +20 and + 30 mm. For combs R33 the height adjustment pins are 14/17 mm high (for R38 17/20 mm). Additionally height adjustment pins of 23 mm are available.

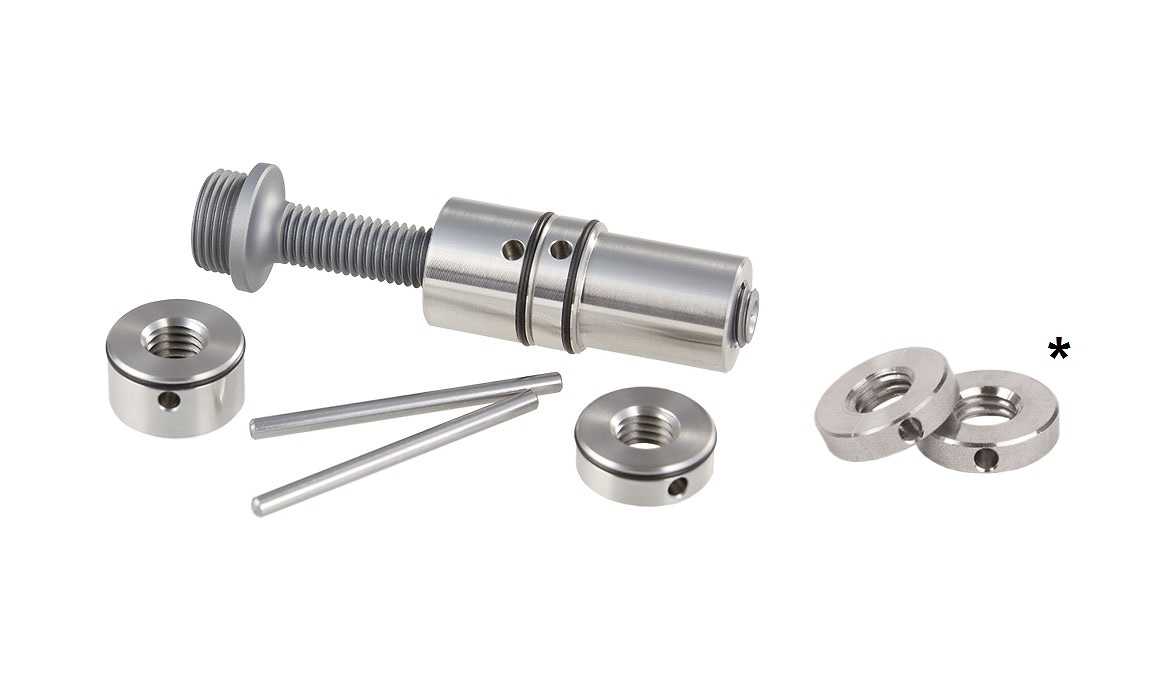

The balancer offers the possibility to balance the weight of the shotgun (approx. 68 to 240 grams). The longer the size of the barrel, the more weight is needed on the stock.
* Additional accessories (per weight 18 g)

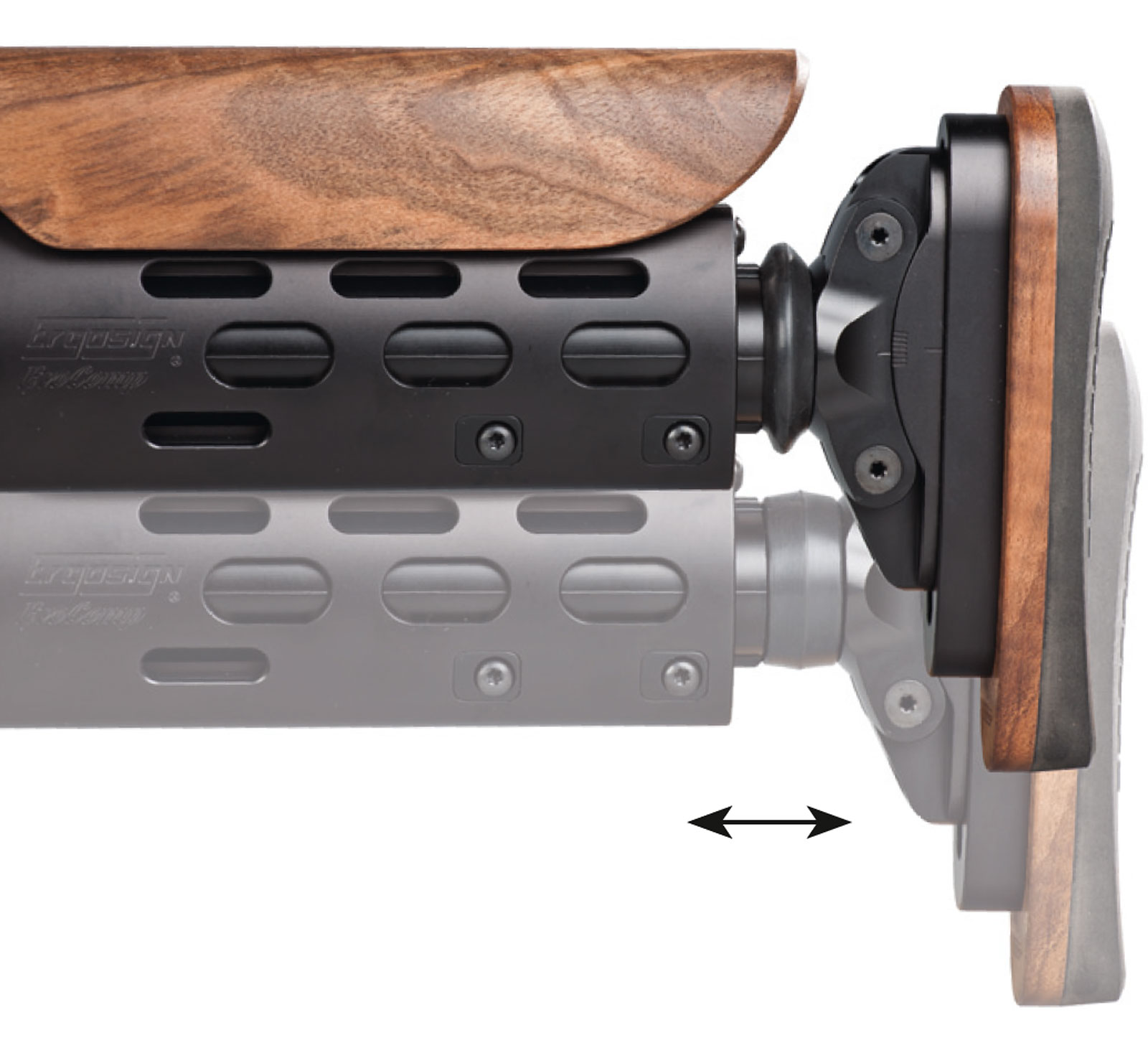

Resulting from many years of development and numerous tests a hydraulic system dampens the back stock through a cylinder against the shooting direction. By an adjusting screw the damping can be regulated according to munitions, barrel length and choke drillings as well as the body measurements which influence the recoil. Thus the shooter will get the requested feedback.

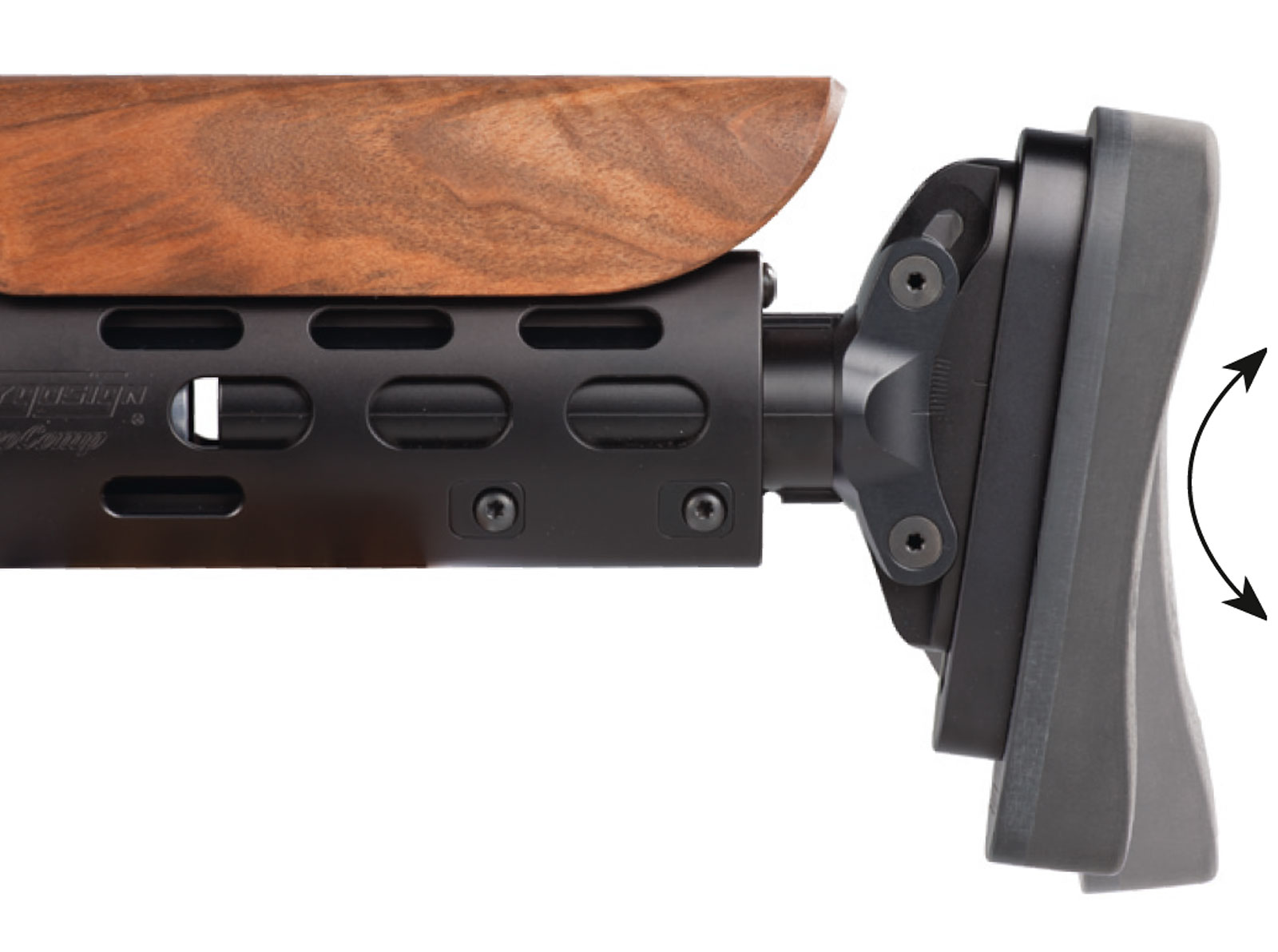

An extended pitch adjustment of +4° is optional. For shooters with an upright shooting position and a big chest measurement the pitch can be additionally extended by 4° (can be recommended for a heightened middle section under 0° and for the TR version).

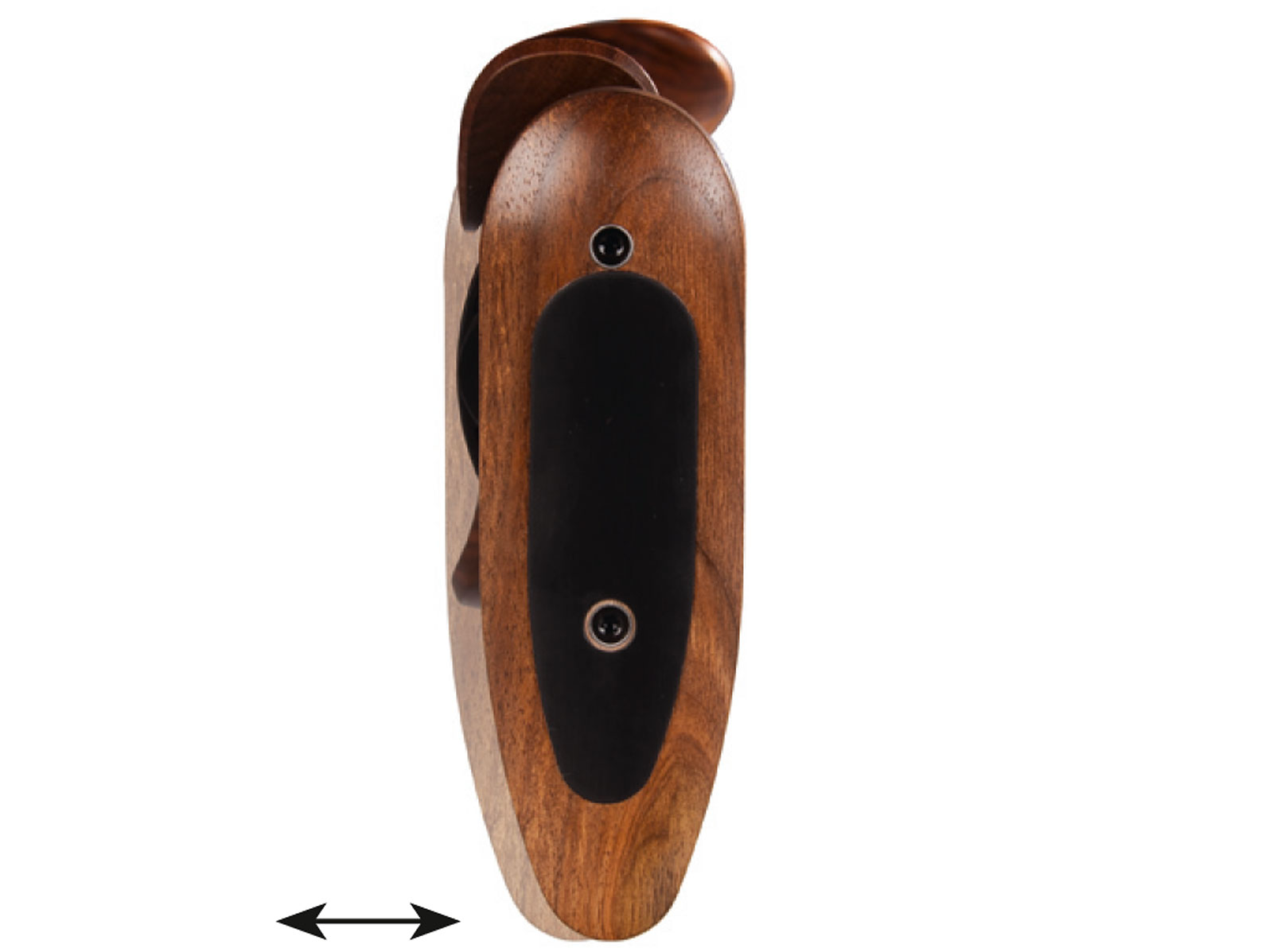

For shooters with a short neck or a big chest measurement the additional cast of about 7-13 mm (standard 3-9 mm) optimizes the adjustmens to the body - to reach a higher comfort.

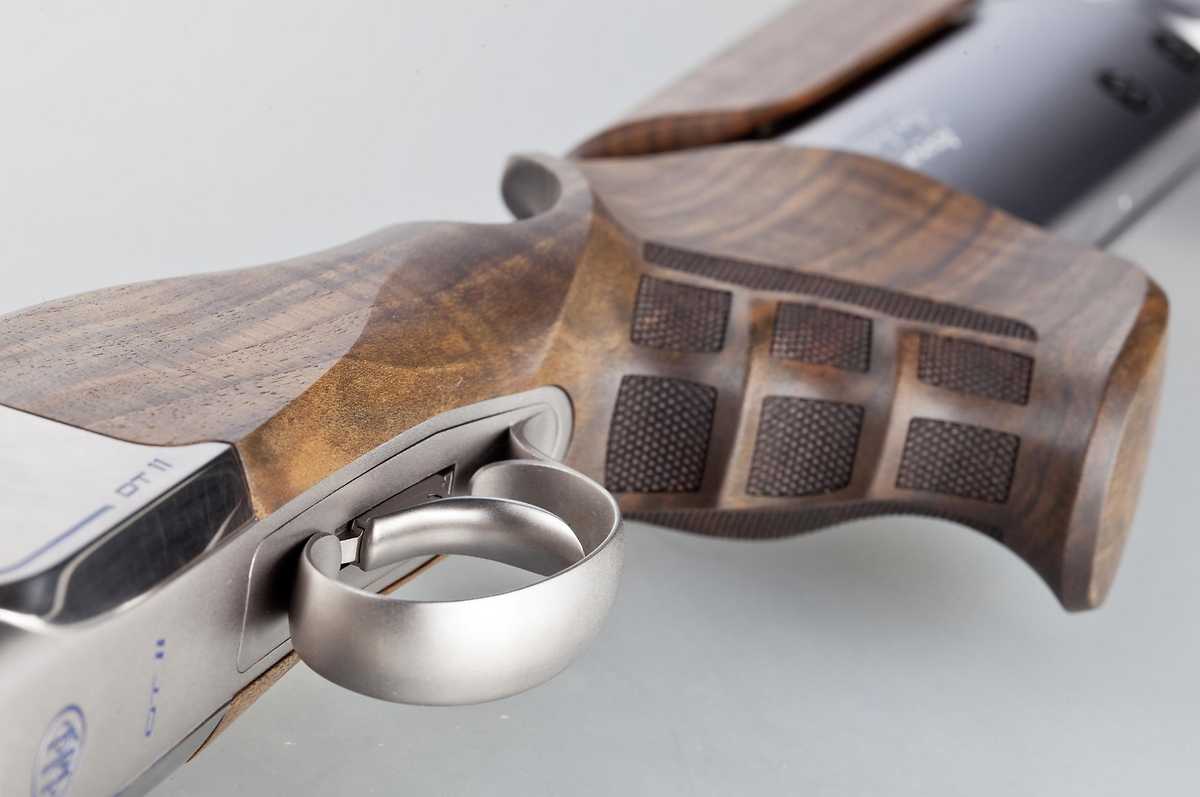

All wooden parts can be ordered in the following wood qualities for an additional fee according to the fore end: selected wood, burl wood, selected burl wood, top burl tood and bird´s eye burl wood.

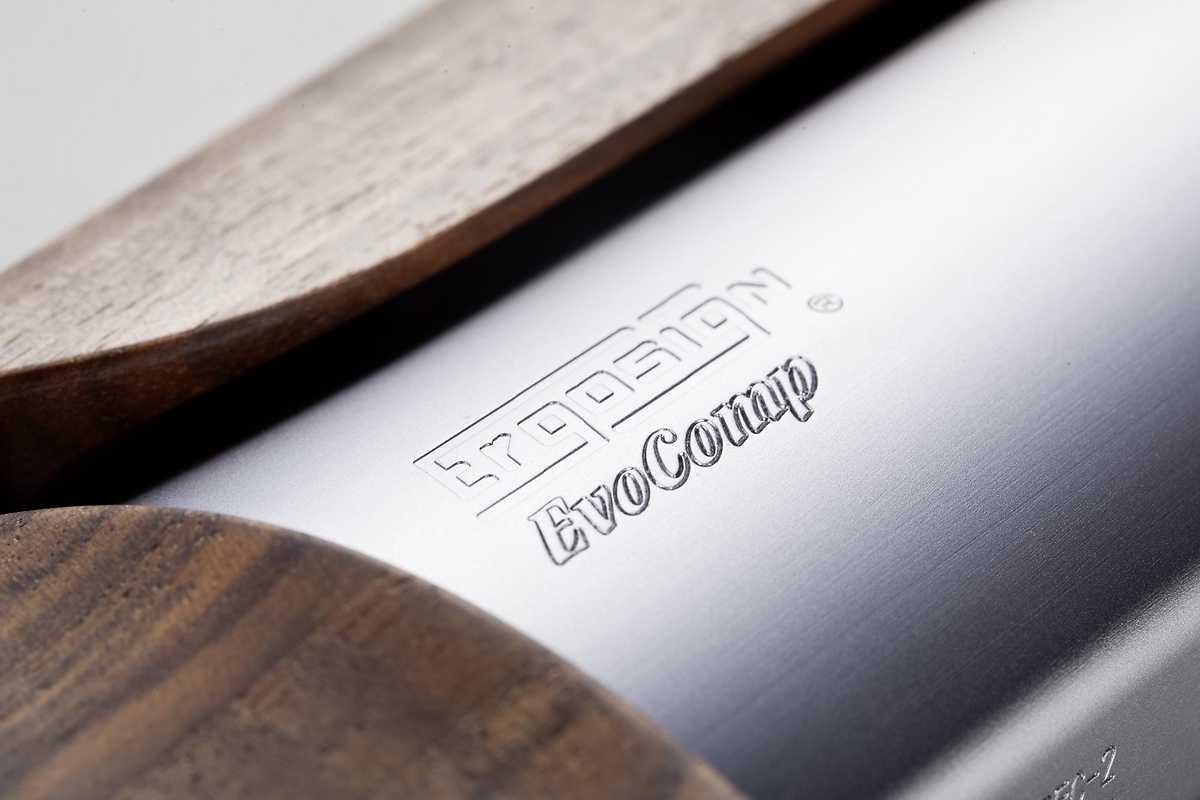

Aluminium parts in the standard version are supplied with black coloured coating. For stocks in standard length of 340 – 390 mm the aluminium parts can alternatively be supplied with titanium coloured coating (only the middle section).

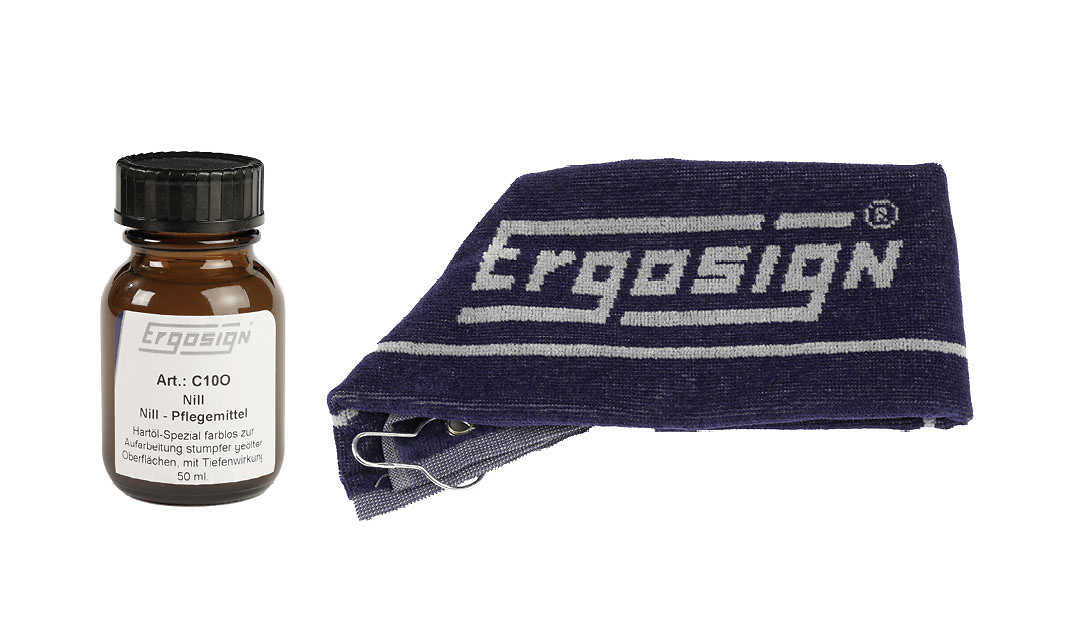

Each stock system is supplied with:
The caps are available in the usual blue design in two different versions. Together with the shooting vest, they form the perfect addition to your Ergosign EvoComp.
The Ergosign Shooting Vest from the Italian Manufacturer Castellani offers you an optimal equipment. The excellent wearing comfort as well as the colour design with embroidery on the front and back matching with Ergosign give an exclusive appearance to this special edition. The shooting vest can be ordered in different sizes in the variants Trap, Skeet and Sporting and is also available for left-handed shooters.
